high quality Ultrasonic flow meter for gas industry USM GT400

FOB Reference Price:Get Latest Price
EUR 25,494-83,210 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Germany
Brand Name:
RMG
Model Number:
USM GT400
Gases:
Pipeline Quality Natural Gas, Air
Power supply:
24 V/DC +/- 10%
Metrology Approvals:

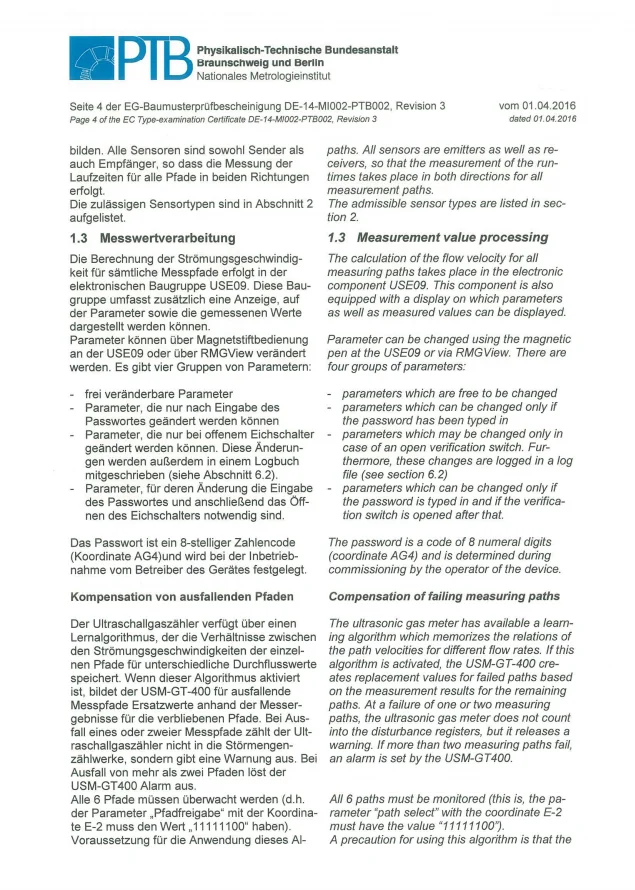

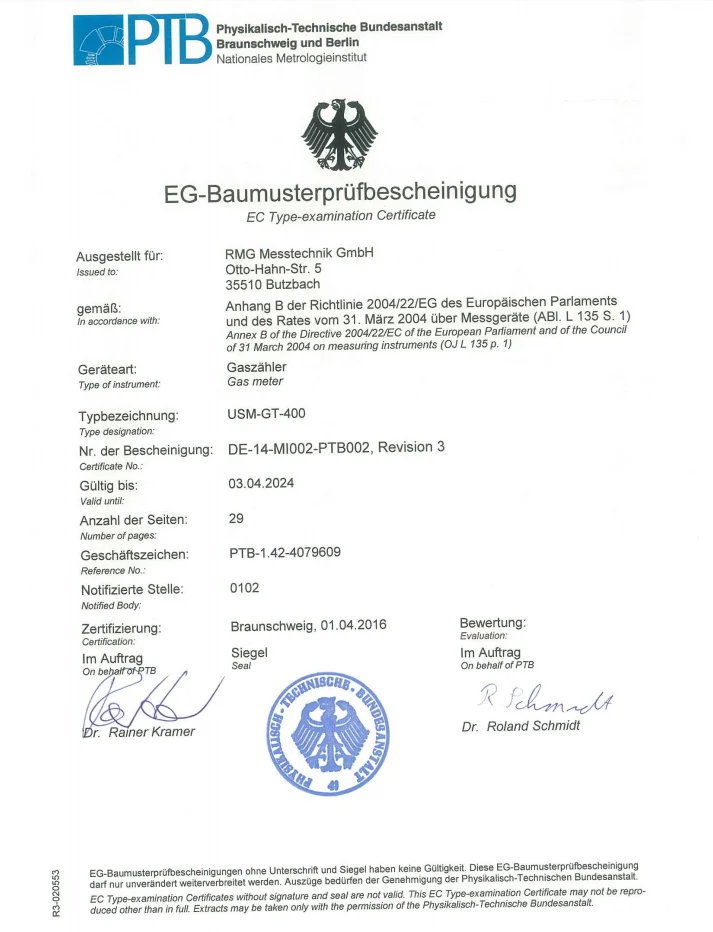

MID, PTB, Measurement Canada
Supply Ability
Supply Ability:
10 Unit/Units per Week
Packaging & Delivery
Packaging Details
We have all variants of packaging, for example wooden boxes, germetic wooden boxes, plastic bags and so on. We will package by your needs!
Port
Hamburg
Lead Time :
1
Video Description
Product Description

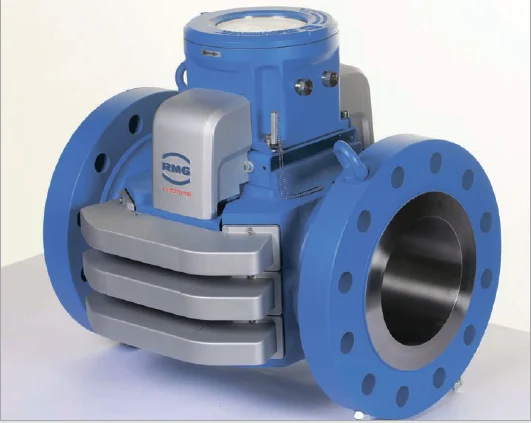

The multipath meter with multiple advantages

The ultrasonic meter USM GT400 from RMG delivers highest accuracy and reliability based on field proven six path technology. Designed for use in a wide range of gas custody transfer and secondary metering applications, the GT400 measures directly bulk flow rate, swirls, cross-flow and asymmetry. Its patented live precision adjustment/echo measurement reduces metering uncertainty.

Proven Technology. Superior Performance.

Model Type
USM GT400
Gases
Pipeline Quality Natural Gas, Air
Measurements
Volume Flow, Totalized Volume, Velocity of Gas, Speed of Sound, Swirl
Sizes
DN 100-600 / 4”, 6”, 8”, 10”, 12”, 16”, 20”, 24” (ANSI 600); Consult RMG for sizes > 24”.
Path Configuration

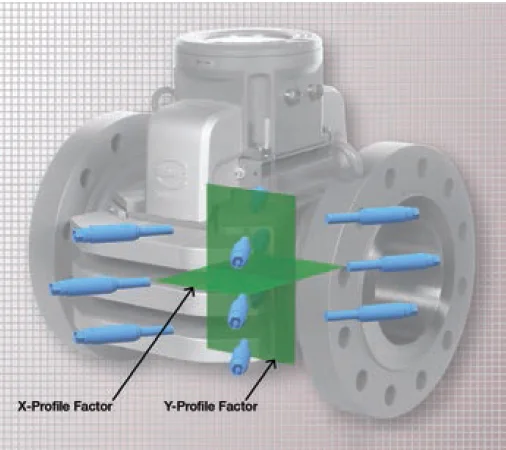

6 Direct Cross (“X’) Path; 3 Planes
Measurement uncertainty (from Qt to Qmax)
Dry calibration with Nitrogen acc. AGA 9
HP-flow calibration. Full measuring range (Qt to Qmax).


+/-0.5%

+/-0.1%
Repeatability
+/- 0.1%
Operating Pressure Range
1 bar (14.5 psi)….. 300 bar (4351psi)
Flanges
up to ANSI600; Consult RMG for higher design pressure
Ambient Temperature
-40°C (-40°F) to +55°C (131°F)
Gas Temperature Range
-40°C (-40°F) to +80°C (176°F)
Operating Relative Humidity
up to 95% condensing
Measuring Interval
Typically 32 measurements/sec
Power supply
24 V/DC +/- 10%
Power requirement
Typically 7 W
Hazardous Area Approvals
ATEX: Ex II 2G Ex de IIB + H2 T6; IECEx: Ex de IIB + H2 T6
CSA, FM: Class I, Div 1, Groups B, C, D T6
Metrology Approvals
MID, PTB, Measurement Canada
Conformities
AGA 9, ISO 17089, OIML 137-2012
Electrical Safety
EMV, Environmental
Analog output
0/4-20 mA (galvanically isolated, programmable, load resistor: max. 400 Ohm, Umax =16 V)
Frequency outputs
2 HF-outputs with fmax = 5 kHz, Namur or Open Collector
Digital I/O
2 X Programmable
Analog input for P&T
Galvanically isolated two-wire 4-20 mA p-transmitter or a 4-wire PT100
Interfaces
RS 485-0

RS 485-1

RS 485-2

Service port with MODBUS-Protocol; RMGViewUSM (max. cable length: 500m / 1640ft); Ethernet via external module.
Serial connection to RMG’s ERZ 2000-NG Flow Computer.

MODBUS-protocol for interfacing with Third-Party Flow Computers, SCADA; Ethernet via external module.
Transducer Frequency

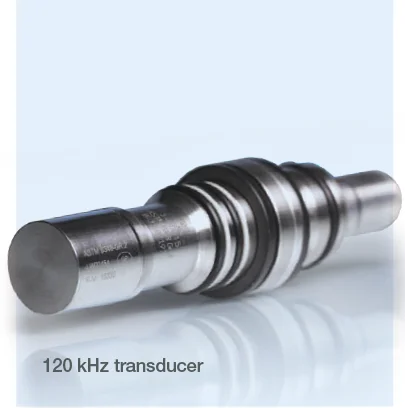

120 kHz/200 kHz for Sizes ≥ 8” (DN 200) 200 kHz for Sizes ≤ 6” (DN 150)
 RMGViewUSM Diagnostics Software
Visualization, flow data, diagnostics, configuration, parameter changes, export/import of parameters and data
Protection
IP66
Meter Body Material
Casted Steel; CS ASME A352 gr LCC
Material Electronics Housing
Aluminum cast
Color/Finish
Metallic Silver (RAL9006, 5-9% gloss) and blue (RAL Design 260 40 40, 5-9% gloss)
Installation outside
With weather protection cover and sun roof
Remarks
Consult RMG for special requirements
Products Show
Our Service

A Better Solution

RMG’s USM GT400 is an intelligent
ultrasonic flowmeter which meets
today’s strict requirements for
accurate and stable measurements
in gas industry operations. It’s
a multipath meter with multiple
advantages: a field-proven
electronics, sophisticated
diagnostics, user-friendly software
to monitor the health of the flow metering system and a superior          six-path measuring technique. RMG’s six-path technology has been proven in demanding applications across the industry for more than a decade.

Proven Technology

Today, intelligent solutions are needed to measure and analyze the quality and volume of natural gas at every stage of its movement, storage and utilization. Gas industry organizations can meet this requirement with RMG’s Regulating and Metering product lines, which are available individually or as complete systems for gas metering stations. RMG by Honeywell has more than 150 years of experience, supplying solutions to the major gas transmission companies in Europe and Asia.

Application Know-how

We partner closely with industrial,
commercial and gas distribution
customers to provide the right flow
measurement solution to optimize
operations at gas-fired power plants,
liquefied natural gas (LNG) storage and
export terminals, city gate facilities,
petroleum refineries, metals and mineral
processing plants, combined heat and
power generation facilities, and all sites
utilizing natural gas as a feedstock.
Local Service
You can depend on RMG for long-term
product reliability and performance,
lowest total cost of ownership and
installation. Global experience, locally
applied.
Our Company

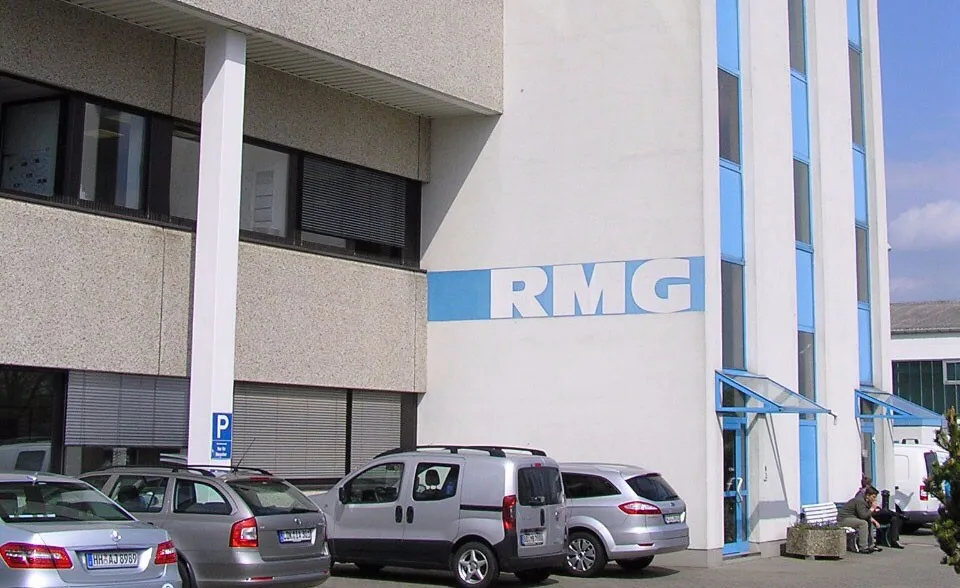

Factory

Honeywall factory

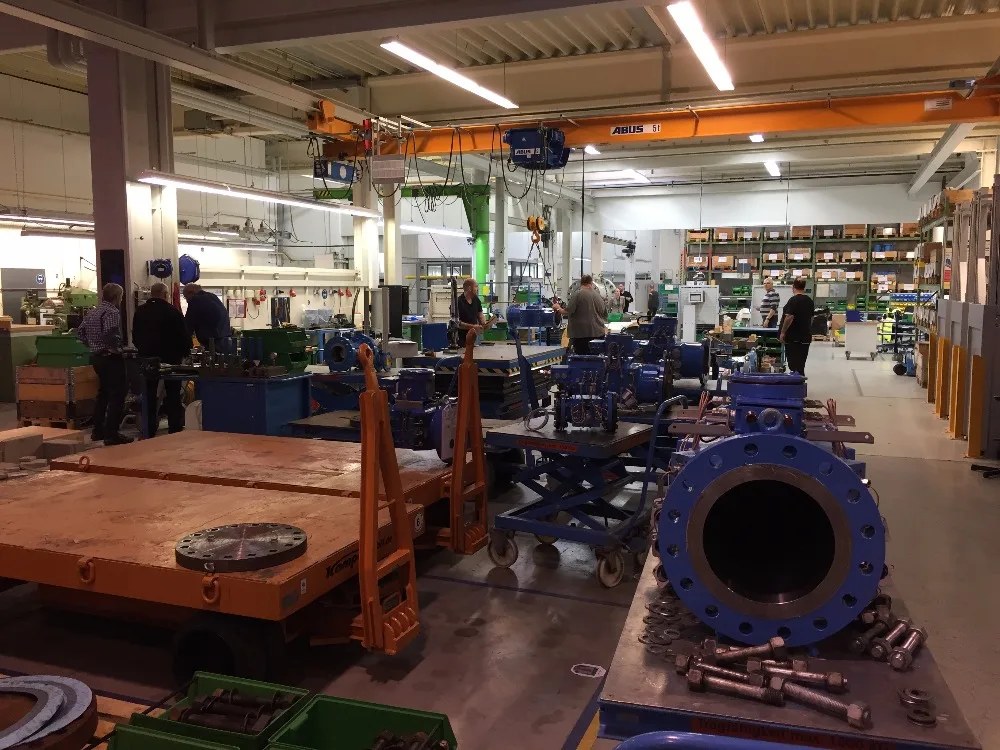

Workshop

Our Workshop

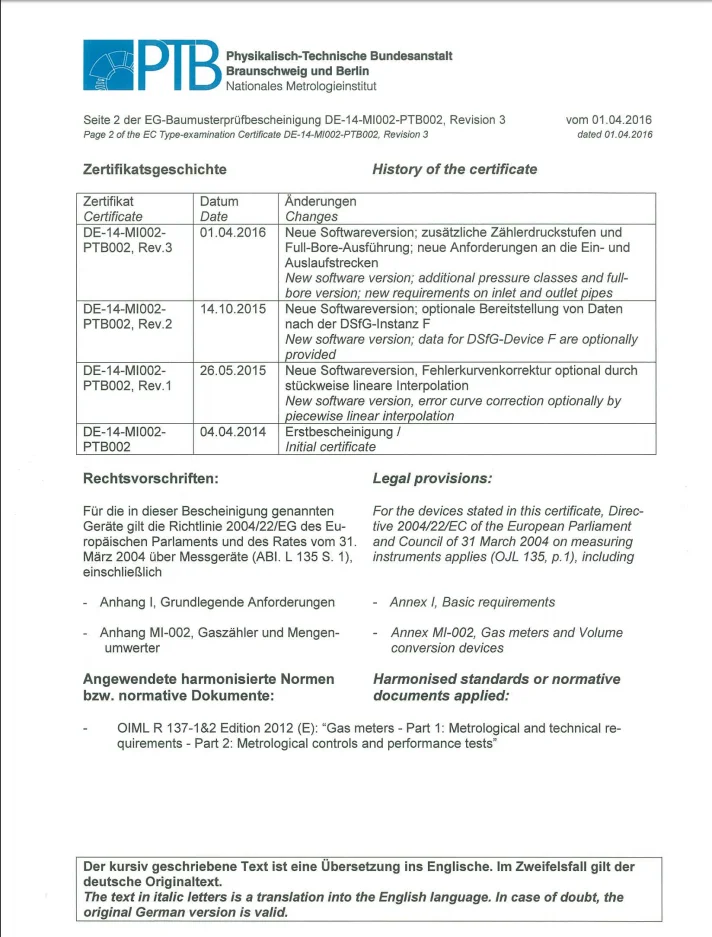

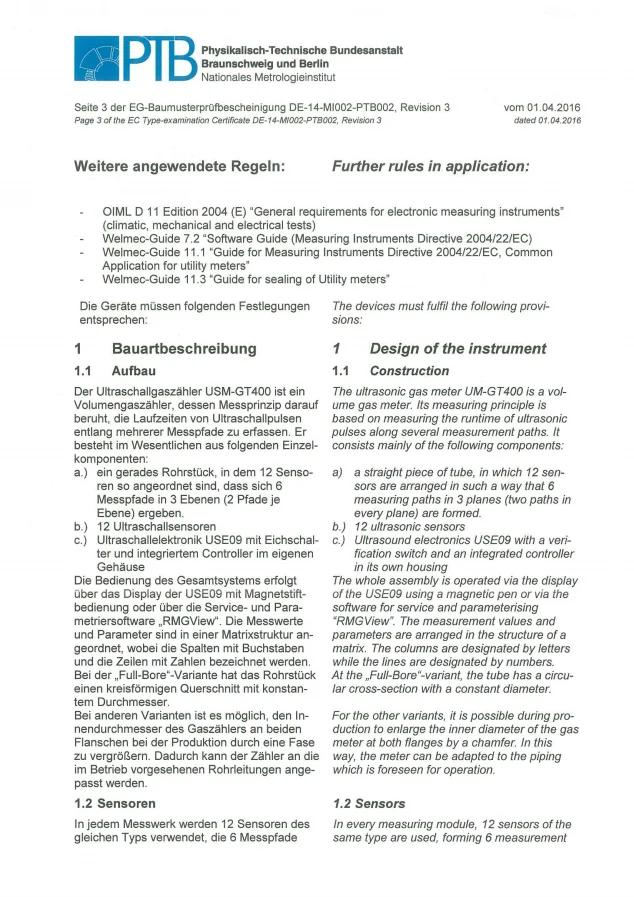

Certifications
